Does every ADAS camera use the same calibration target?

No. Target design and placement vary by vehicle system. The correct target must match the camera and the vehicle’s calibration procedure.

Can a calibration target replace a road test?

No. A target supports static calibration, while some systems also require dynamic calibration during driving. The vehicle procedure determines which method applies.

Why can windshield work affect a camera calibration target setup?

Windshield work can change the camera’s mounting relationship to the glass. Calibration checks the camera’s view after the windshield and camera area are serviced.

Glossary

What Is a Calibration Target?

A calibration target is a marked board, panel, or pattern that helps an ADAS camera set its view correctly. The target gives the vehicle’s camera a known visual reference during static calibration. Technicians place it in a specific position in front of the vehicle, then check how the camera reads its markings.

Quick Facts About Calibration Target

Key Takeaways About Calibration Target

A target uses clear markings that the camera can recognize.
Its position must match the vehicle’s calibration procedure.
A target is not the same as the camera or sensor.

How Calibration Target Works

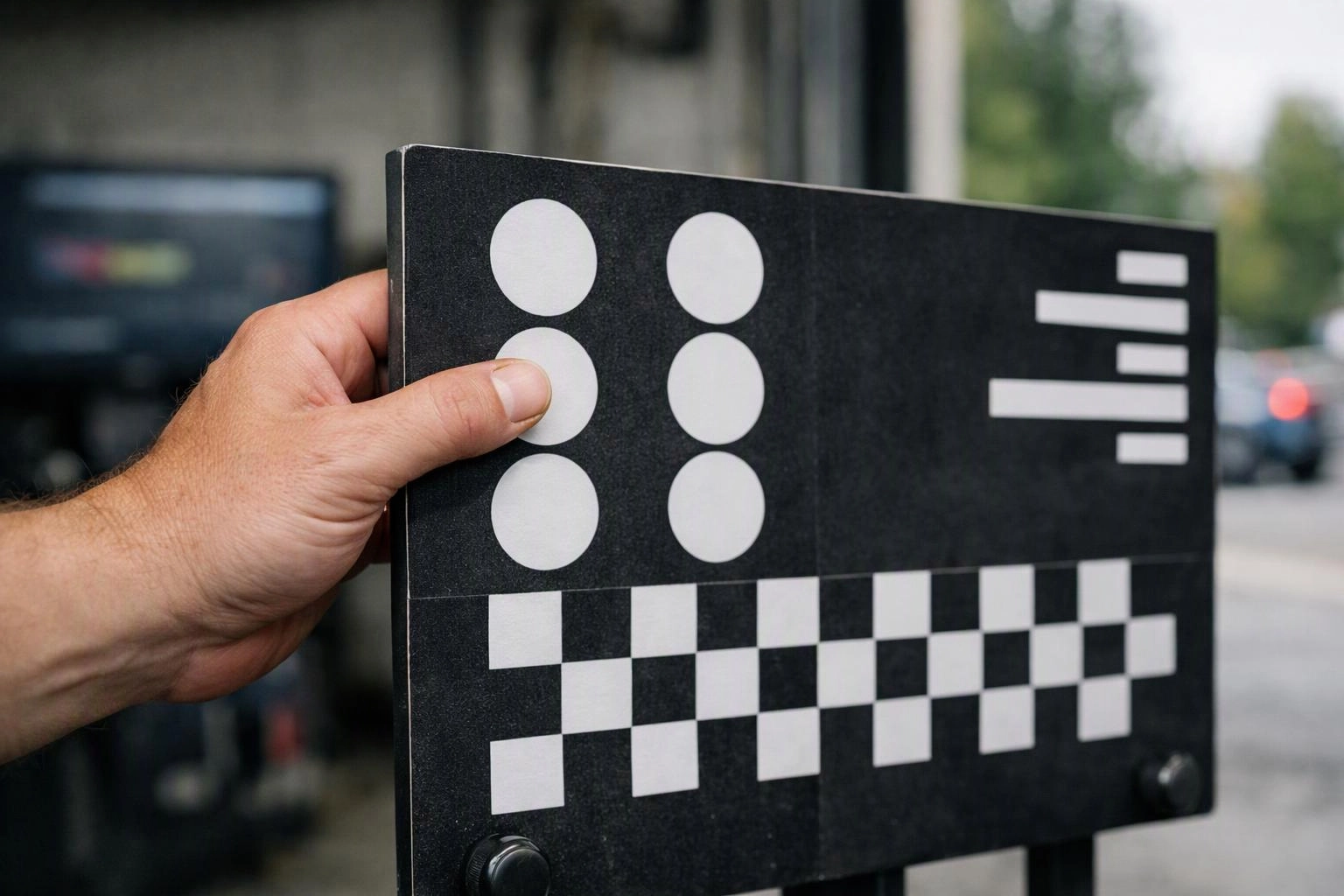

A hand holds a black calibration board with white circles, bars, and checker squares outdoors

A calibration target gives a vehicle camera a fixed visual point to read. The target may use lines, shapes, or patterns that match the camera system. The vehicle’s computer compares the target’s known position with the camera’s view.

Related glossary terms: Static Calibration, Dynamic Calibration, Forward-Facing Camera.

During static calibration, a technician places the target in front of the vehicle. The position depends on the vehicle design and the calibration procedure. A level floor and correct alignment help the camera read the target properly. The system can then adjust its reference for features such as lane markings.

Static calibration uses a target in a controlled work area. Dynamic calibration uses driving conditions and may not use a visible board. Both methods help the vehicle check camera aim after windshield work or related repairs.

Two men talk in a garage, one holding a tablet while seated across from the other at a counter

From the WindshieldRepairRedmondwa.com team

When we prepare an ADAS Calibration job, we check that the target matches the vehicle’s system. We place it according to the required reference points and confirm that the setup area supports a clear camera view. Our team also checks for issues that could affect alignment before calibration begins.

Calibration Target in Practice: A Real-World Example

After a windshield replacement, a vehicle may need ADAS Calibration for its forward-facing camera. A technician places the correct calibration target in front of the vehicle, aligns the setup, and follows the vehicle’s calibration procedure.
